Pods
The Pods card displays the pod names along with its metrics as in the following screen.
The following metric detail columns are available.
| Column name | Description |
|---|---|
| Pod Name | The pod names deployed. |
| Namespace | he deployment within a namespace. |
| CPU usage (cores) | The amount of CPU resources consumed by the containers running inside a pod. |
| Memory usage (MB) | The amount of memory resources consumed by the containers running inside a pod. |
| Status | The state and health of a pod as part of a deployment. |
Viewing pod details
Click any pod name you want to view in the Pods card.
The following details of the selected pod are displayed in a dashboard.
The top header displays if the pod is ready or scheduled, pod status, and the total number of pod restarts.
The following graph widgets related to the pods are available.
- Cores
- CPU usage
- Memory
- Memory usage (MB)
- FS throughput
- FS I/O
Click View all in the Pods card header to view all the available pods.
Multi-column Filter
Pods

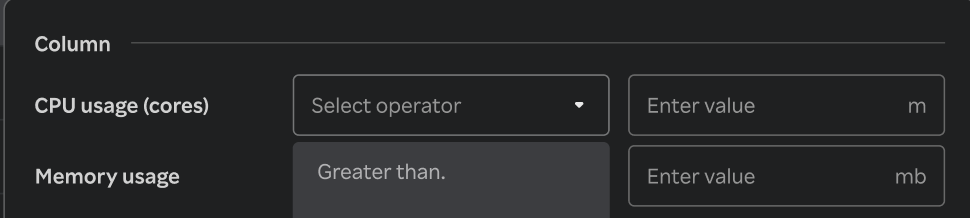

- Multi-column filter can be applied on numeric columns within the Pods Table to refine the displayed data based on specific conditions.
- When the user clicks on the “Filter by” option, user can apply filter below numeric columns
| Column Name | Description |
|---|---|
| CPU usage (cores) | The amount of CPU resources consumed by the containers running inside a pod. |
| Memory usage (MB) | The amount of memory resources consumed by the containers running inside a pod. |
- Each filter condition is applied using the below operators and value ( user input based on the unit)
| Operator |
|---|
| Greater than |
| Less than |
| Equals |
| Greater than or equals |
| Less than or equals |
- Once filters & conditions are applied save button is enabled & click "Save" to apply the filter.
- Once filters & conditions are applied it displays no. of filters are applied.
note
- Filters are applied using AND logic — all specified conditions must be met for a record to be displayed.
- Only numeric columns support filtering; non-numeric fields (e.g., text or categorical values) are excluded from the filter options.
- If no records match the selected filters, the table will display a message such as “No data".
- The multi-column filter state persists until the user clears filters by clicking on "Clear" button when Filter by button is clicked.
- A "Reset" button is available to clear all applied filters and restore the table to its original, unfiltered state. This button is enabled only when one or more filters are currently applied.
